Why Filler Material Might Be Necessary When Reloading Subsonic Ammunition
Reloading subsonic ammunition presents challenges that differ significantly from those encountered with standard or high-velocity loads. One of the primary issues is the large case volume relative to the small powder charge required to keep velocities below the speed of sound (approximately 1,125 fps at sea level). This imbalance can lead to inconsistent ignition, erratic velocities, and reduced accuracy.
To mitigate these effects, some reloaders use filler materials to occupy excess case space. Properly applied fillers can stabilize powder positioning and improve consistency in subsonic loads. In our subsonic load data, we explicitly note loads where the use of a filler material is recommended.
The Role of Case Fill in Subsonic Reloading
In conventional rifle loads, the powder charge typically occupies a substantial portion of the cartridge case, promoting uniform ignition and predictable burn behavior. Subsonic loads, by contrast, require drastically reduced powder charges, leaving a significant portion of the case empty. This excess space can cause several issues:
- Inconsistent powder positioning without a filler, the powder can shift within the case, depending on rifle orientation. This may result in delayed or uneven ignition if the primer flame does not consistently reach the powder charge.
- Erratic velocity variations in powder position can lead to inconsistent pressure curves and measurable velocity spreads, negatively affecting accuracy and reliability.
- Incomplete combustion: Poorly confined powder charges may burn inefficiently, leaving unburnt residue in the barrel and reducing overall performance.
How Fillers Address These Issues
Filler materials are placed between the powder charge and the bullet to occupy unused case volume. Their primary purpose is not to increase pressure, but to control powder position and promote consistent ignition.
When used correctly, fillers can provide the following benefits: Consistent powder positioning. The powder remains near the primer, improving ignition reliability. Improved velocity consistency. A more uniform burn leads to tighter extreme spreads and better accuracy. Cleaner combustion More complete powder burn can reduce fouling and unburnt residue.
⚠️ Important: Fillers must be used carefully. Over-compression or improper materials can cause dangerous pressure spikes. Always follow published load data and proven practices.
Comparison Table of Filler Options
| Filler Option | Type / Form | Best Use Case | Key Advantages | Main Downsides / Risks | Cleanliness | Notes / Tips |
|---|---|---|---|---|---|---|
| Dacron (Polyester Fiberfill) | Light synthetic fiber (fluffy) | General reduced/subsonic rifle loads with lots of empty case volume | Very light, easy to use, helps keep powder near primer, widely used | Dangerous if compressed too tightly (pressure spike risk) | Clean | Use a small, airy tuft—never packed hard |
| Kapok | Natural plant fiber (fluffy) |
Similar role to Dacron for reduced load s |
Very light, effective powder positioning, traditional filler choice | Can vary in consistency; compression risk like Dacron | Clean | Use loosely, avoid “plugging” the case |
| Puff-Lon | Commercial granular filler | Subsonic loads where repeatability is important (ex: .300 BLK) | Designed specifically for this purpose, consistent volume fill, easy to measure | Adds cost; must confirm compatibility with cartridge/load approach | Generally clean | Good option if you want a purpose-made product |
| Cream of Wheat (CoW) | Food-based granular filler | More of a “last resort” filler for occupying space | Fills volume effectively, easy to find | Can leave residue, may cause inconsistencies, generally less recommended | Messy | Can increase cleaning needs and may not behave uniformly |
| Polyester Batting | Sheet-style synthetic fiber | When you prefer cut-to-size pieces instead of loose fluff | Easy to handle, stays together well | Risk of too much material and localized compression | Clean | Use small, consistent pieces and avoid tight packing |
Common Filler Materials

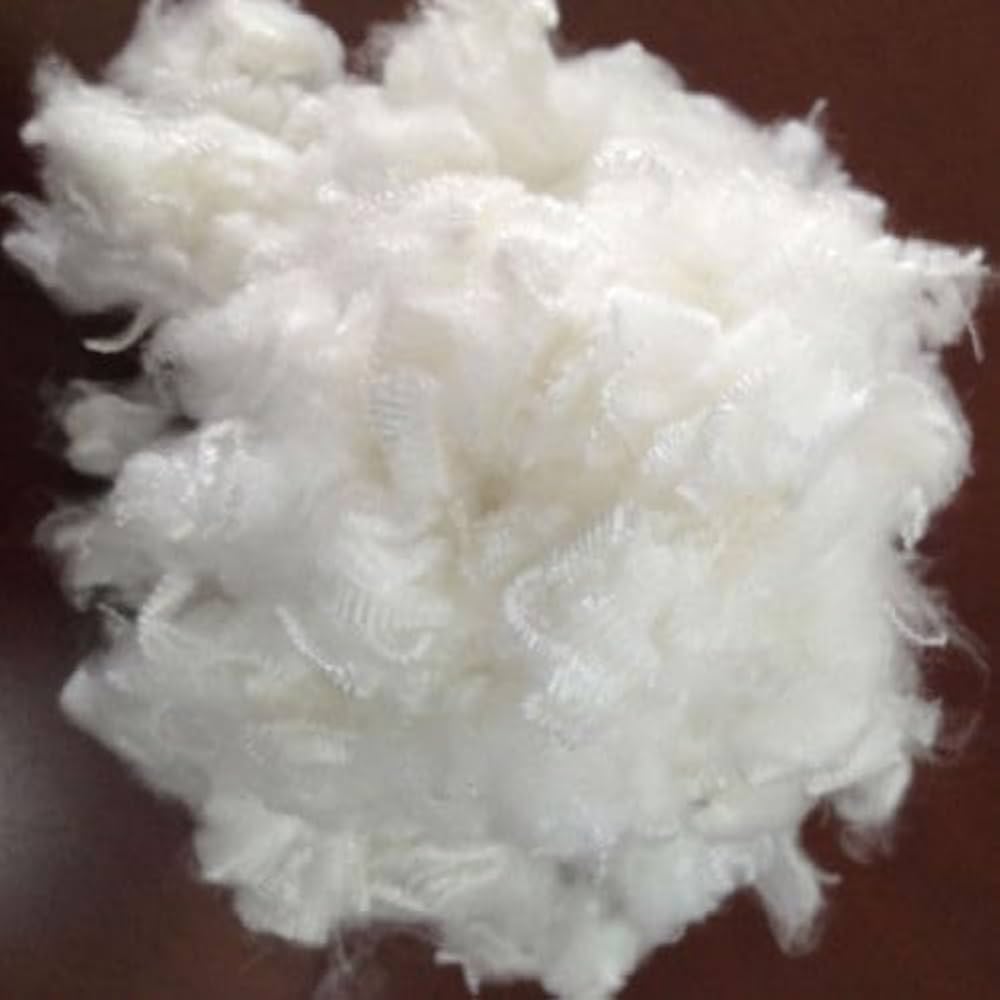

Dacron (Polyester Fiberfill)
A lightweight synthetic polyester fiber commonly found in pillows and insulation. Small, loosely packed amounts are placed over the powder charge to prevent movement. Dacron should never be tightly compressed; a light, airy fill is sufficient and safer.

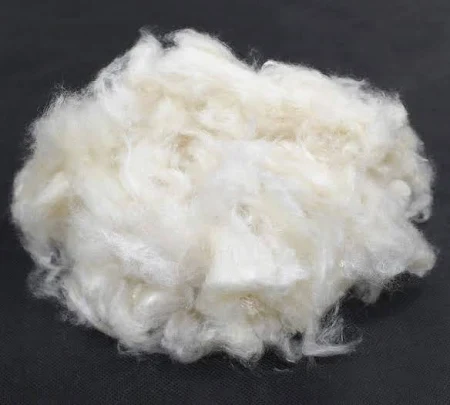

Kapok
A natural fiber harvested from kapok tree seed pods. Similar in behavior to Dacron, kapok is light and fluffy and has been historically used as a filler. Care must be taken to avoid excessive compression.
Puff-Lon
A commercially manufactured granular filler specifically designed for reduced and subsonic loads. Puff-Lon is engineered to occupy case volume consistently and is commonly used in cartridges such as .300 AAC Blackout. Often recommended by brands like Hodgdon.

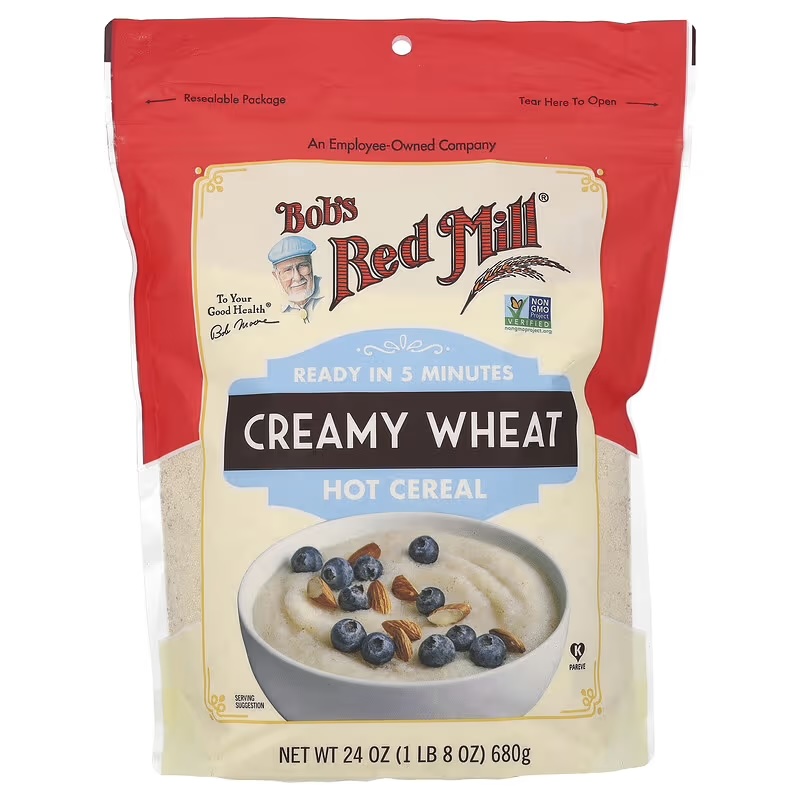

Cream of Wheat (CoW)
A fine, granular cereal product sometimes used as a filler. While it can effectively occupy case space, it may leave residue and is generally less recommended due to cleaning concerns and potential inconsistencies.

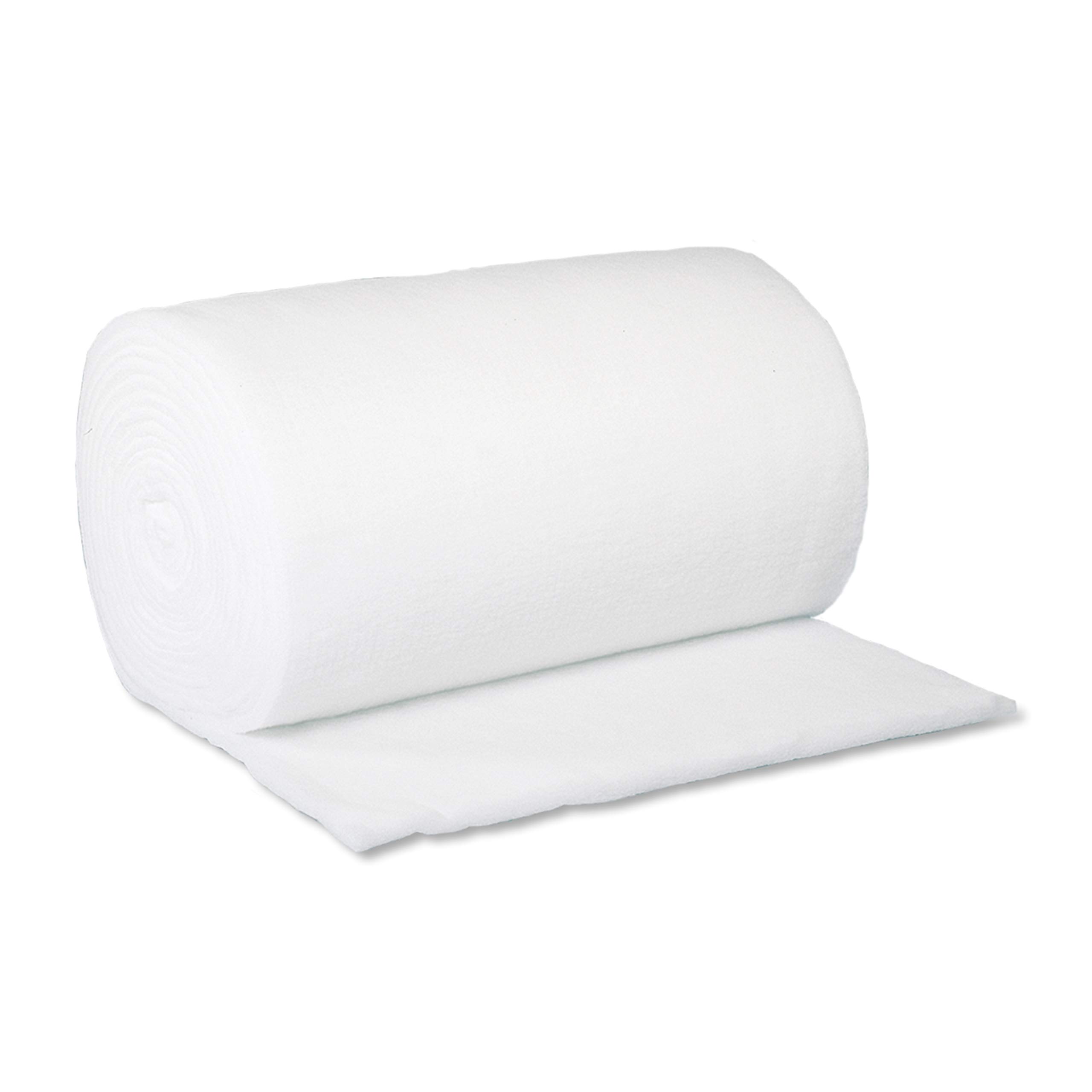

Polyester Batting
Sheet-style polyester fiber used in quilting and upholstery. Small, carefully measured pieces can be inserted over the powder charge. As with other fiber fillers, the correct quantity is critical to avoid creating localized pressure spikes.
Alternatives to Using Fillers
In some cases, fillers can be avoided entirely by selecting powders designed for reduced or subsonic loads. Examples include Accurate 5744 and Hodgdon Trail Boss, which offer bulky grain geometry and predictable ignition at low charge weights. These powders often provide consistent subsonic performance without the need for additional filler material.
Q&A (Frequently Asked Questions)
Q: Why would I even need filler material for subsonic loads?
A: Subsonic loads often use very small powder charges, leaving a lot of empty space in the case. That can cause powder to shift around, which may lead to inconsistent ignition, velocity spread, and reduced accuracy.
Q: Does filler increase pressure?
A: A filler’s purpose is not to increase pressure, but to control powder position for more consistent ignition.
However, incorrect filler use (especially compression) can cause dangerous pressure spikes, so it must be used carefully.
Q: What’s the safest type of filler to start with?
A: Many reloaders start with Dacron because it’s lightweight and effective, but only when used as a loose, airy fill. Never compress it like a solid plug.
Q: Can I avoid fillers completely?
A: Yes. A common alternative is choosing bulky powders that perform well at low charge weights (such as Accurate 5744 or Hodgdon Trail Boss). These can often produce consistent subsonic results without needing filler at all.
